Supporting industrial and mining operations—from assessment and process design to technology implementation, commissioning, and long-term operations and maintenance.
Text
With more than a decade of experience, Ganeca Environmental Services delivers reliable, science-led treatment solutions tailored to the characteristics and operational needs of each wastewater stream. From system design and technology implementation to regulatory compliance, operations, maintenance, and continuous optimization, we help clients achieve efficient, sustainable, and measurable treatment performance.
Ganeca provides integrated and automated mine water treatment systems—from chemical preparation and dosing to real-time monitoring—supporting reliable performance and environmental compliance.
An effective MWTP begins with understanding the water, site conditions, and environmental requirements—not simply selecting equipment.
Ganeca combines site assessment, laboratory testing, treatment trials, and compliance review to establish a reliable MWTP design basis.
Every stage is connected to deliver consistent treatment performance from chemical preparation to final monitoring.
The process begins with chemical preparation based on laboratory and jar-test results. Chemicals are then dosed automatically, mixed with mine water, and directed to the sedimentation system for solids removal. Integrated sensors monitor flow, pH, and TSS, allowing the system to adjust dosing and track treatment performance in real time.
Automation connects treatment operations with real-time field data for faster and more consistent control.
Ganeca MWTP integrates water-quality sensors, flow monitoring, dosing pumps, HMI control, and GanecaLink into one connected system. Operators can monitor treatment conditions, review historical trends, and respond more quickly to operational changes.
Choose a configuration based on site accessibility, power availability, and operational requirements.

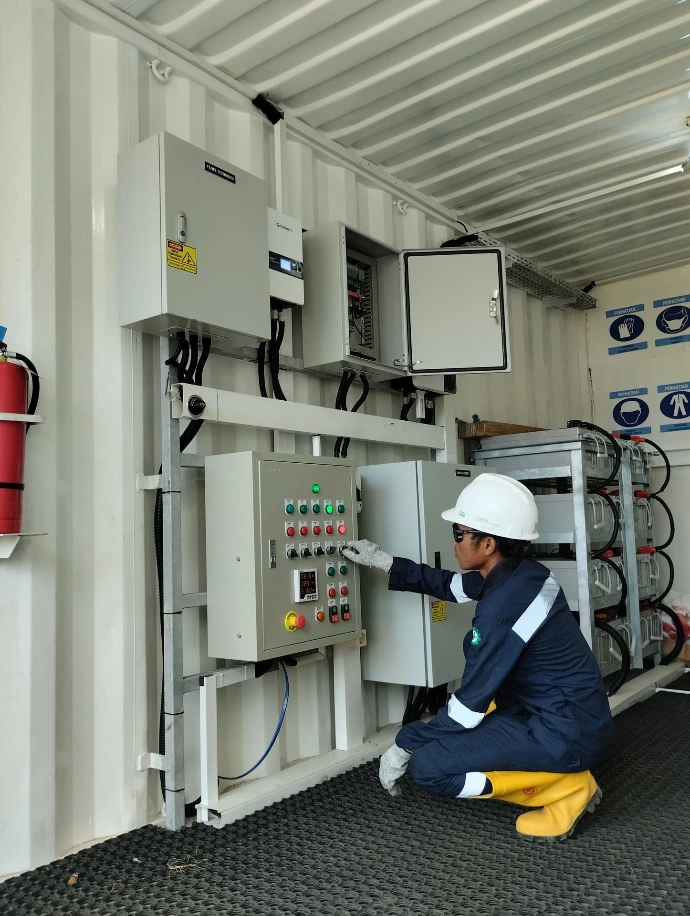

An automated system with solar and battery power, multiparameter sensors, and a modular container design for remote mining operations.
An automated, PLN-powered system with multiparameter sensors and integrated controls for sites with reliable grid access.
A tailored system designed around specific water characteristics, treatment targets, flow capacity, site infrastructure, automation level, and power requirements.
The following specifications represent Ganeca’s standard modular MWTP configuration. Components and capacities can be adjusted based on water characteristics, treatment targets, site conditions, and final engineering.
| Component | Standard Specification |
|---|---|
| Chemical Capacity | 11,000 L |
| System Housing | 20 ft container |
| Exterior Finish | Steel paint with custom mural |
| Power System | 6.6 kWp solar panels, 28 kWh battery, 6 kW inverter, or PLN supply |
| Chemical Pump | 0.37 kW power; 250 L/min flow rate; 12 m head |
| Dosing Pump | 60 L/h at 10 bar or 120 L/h at 10 bar |
| Raw Water Pump | 1.5 kW power; 350 L/min flow rate; 21 m head |
| Mixer Agitator | 1:60 gear ratio with aluminium blade |
| Radar Level/Flow Sensor | HR80G; measurement range 0-2 m; 4-20 mA and Modbus output; 24 VDC; IP67; DN50 flange; accuracy ±10 mm; aluminium-alloy housing |
| Digital Ball Valve | DN50; 2 inch; 2-way; 220 V |
| Water-Quality Sensor | GanecaProbes multiparameter sensor: pH 0-14; TSS 0-4,000 mg/L; operating depth 0-20 m |
Specifications may be customized according to project requirements and are subject to final engineering design.
Ganeca MWTP combines automated chemical dosing, integrated sensors, modular infrastructure, and real-time monitoring in one field-ready system. Designed around site-specific water conditions, it supports consistent treatment performance, stronger operational control, and environmental compliance.
Deliver consistent treatment performance to reduce environmental risks and support compliant water discharge.
Improve operational reliability through automated control, real-time monitoring, and adaptable system design.
Our multidisciplinary team brings together engineers, environmental scientists, process specialists, and field operators. From initial assessment to daily operations, they work closely with clients to deliver treatment systems that are practical, reliable, and built for real site conditions.
